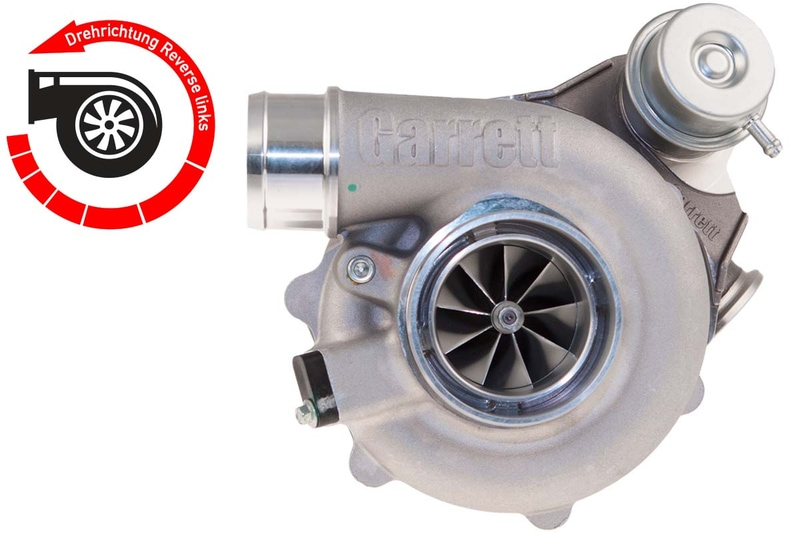

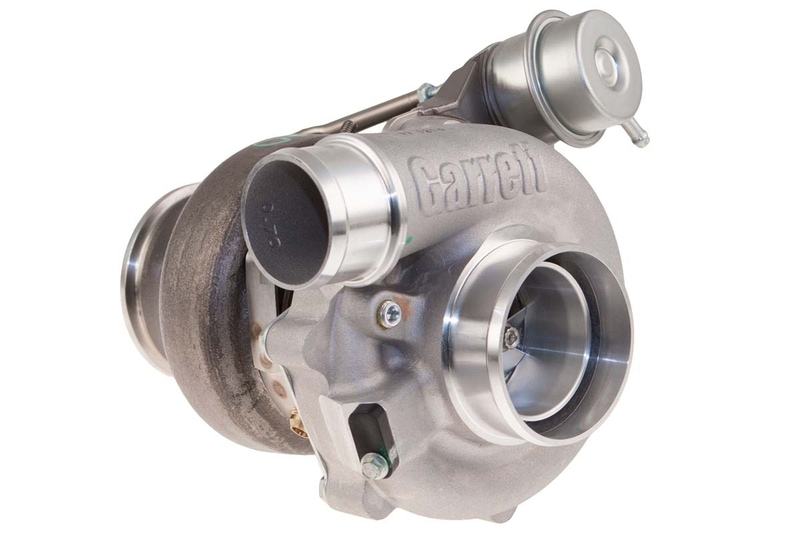

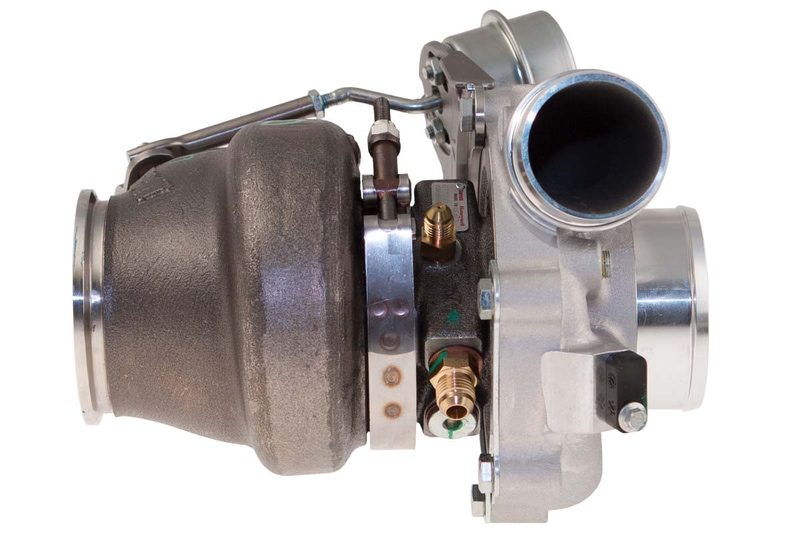

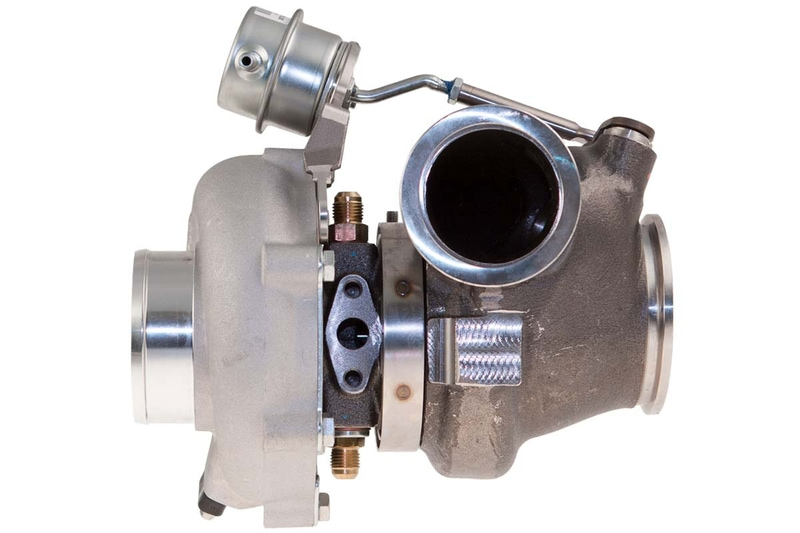

Garrett G25-660 Turbocharger 877895-5010S

The delivery time for products in stock is 1-3 business days.

If the product is not in stock and it is a pre order product, the average delivery time is 5-21 business days. If the product has a longer delivery time than previously announced, we will be in touch.

• Up to 660 hp

• Reverse direction of rotation

• Ball bearing

• Compressor wheel Ø 54 mm

• Power range: 300–660 hp

• Engine displacement: 1.4–3.0 L

• V-Band input – V-Band output – Single channel – Internal waste gate – A/R 0.92

Garrett G-Series – The latest and most advanced turbocharger generation!
These ultra-compact compressors offer top performance with minimal space requirements.

Features:

• Latest CFD-optimized, forged milled compressor wheel

• High-flow, cost-effective compressor housing with integrated, easy-to-use speed sensor connection

• Direction of rotation: reverse (counterclockwise)

• Ceramic double ball bearing cartridges

• Includes -4AN oil restrictor fitting with 1 mm orifice

• Four large water channel connections

• Double piston seals on the compressor and turbine sides

• MAR-M 1050 °C turbine wheel

• Water-cooled and oil-cooled

• Internal waste gate

• Turbine housing: V-Band inlet, V-Band outlet

• Compressor side: Inducer Ø 54 mm / Exducer Ø 67 mm

• Turbine side: Inducer Ø 54 mm / Exducer Ø 49 mm

Delivery content: Turbocharger, 0.5 bar actuator, 2 x -6AN water connectors and two plugs, 1 x oil restrictor -4AN
