GFB DV+ T9358 Diverter Valve - Ford Fiesta ST Mk.7 182HP, Mercedes A, CLA, C, E, GLA, GLE, SLK
The delivery time for products in stock is 1-3 business days.
If the product is not in stock and it is a pre order product, the average delivery time is 5-21 business days. If the product has a longer delivery time than previously announced, we will be in touch.
Terms for product returns:
- You must return the ordered products within 14 days of receiving
- The products must be unused and without damages
- Commission fee for handling returns is 21,90€
- For product returns, the customer is in charge of the return costs. Only door to door service (Express)
- Shipping costs are not refunded
For international orders (outside of Europe) sales are final and non-refundable. Once an order is placed, it cannot be canceled or returned. By placing an order, you acknowledge and agree to these terms.
Return address: QT Parts, Vasarakatu 8B, 37150 Nokia, Finland.
Pre order / made-to-order products
If the product you have ordered is a pre order or made-to-order item, it is not subject to the 14-day right of withdrawal or return under consumer protection laws, as the product is manufactured or sourced specifically based on the customer’s individual order.
If you wish to cancel your order before receiving the product, we will refund 50% of the total order amount.
This condition applies to the following product categories:
- Suspension
- Engine Tuning
- Engine Parts
- Exhaust Systems
- Fueling
- Turbochargers/superchargers
- Drivetrain
- ECE-approved Downpipes
All of the above products are manufactured or sourced individually based on the customer’s order, and therefore cannot be returned after delivery, unless the product has a manufacturing or material defect.
In the event of such a defect, the standard liability for defects as provided by consumer protection legislation shall apply.
Many vehicle manufacturers use an electrically controlled original valve, which is all too often already defective or leaking ex works.
This causes a loss of power, which is even more significant in vehicles with increased performance due to the higher boost pressure.

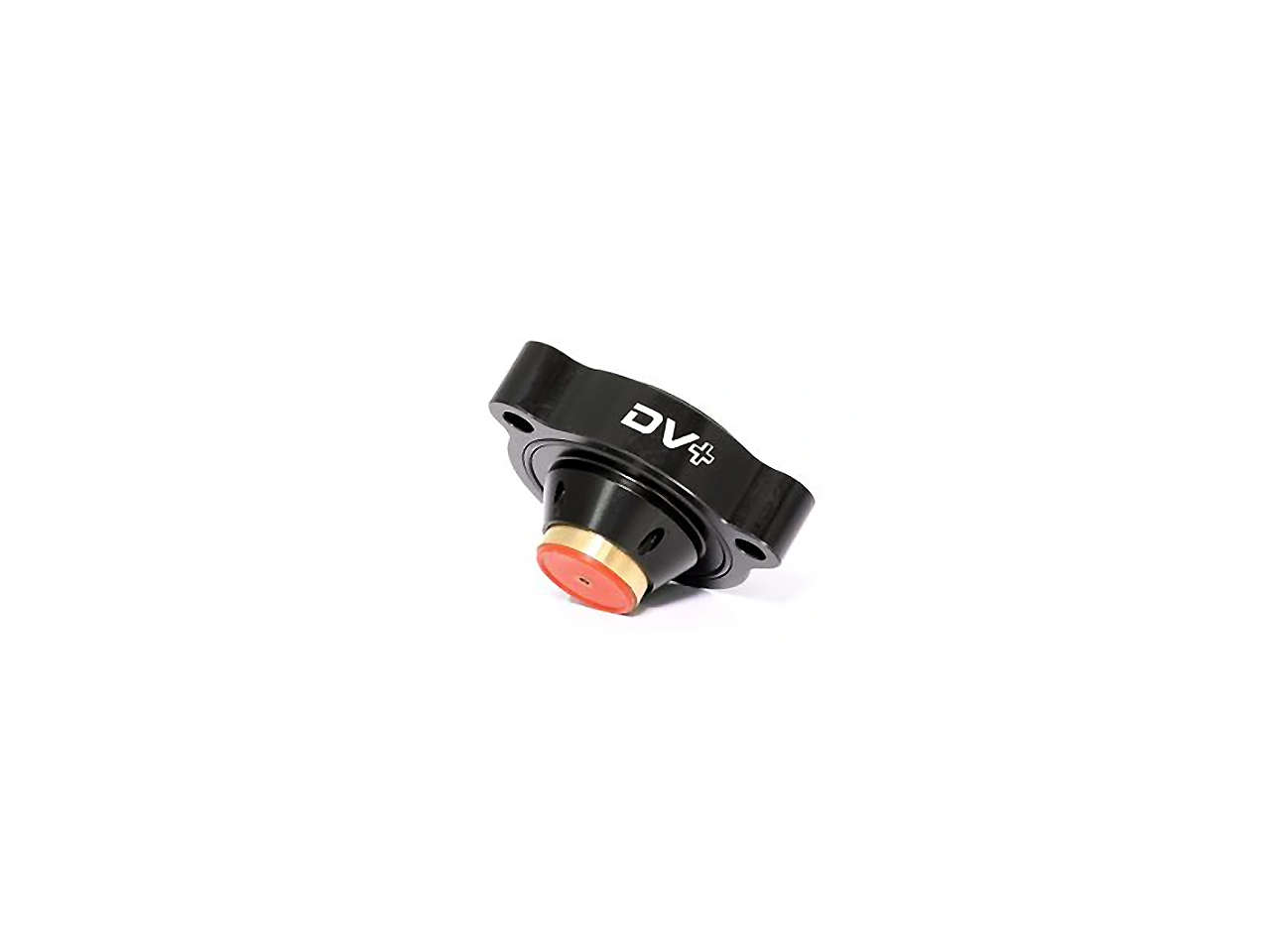

Here GFB extends the DV+ series with a Plug 'n Play solution: The robust, anodised and CNC-milled Aluminum housing of the GFB DV+ diverter valve closes this "hole" in the charge air system and the vehicle has Noticeably more power and torque. The mode of operation has been proven by GFB in several performance measurements on the test bench!
As the GFB DV+ only replaces the original valve and the original control unit (the solenoid valve unit) is reused, it integrates perfectly.
GFB's DV+ on the other hand responds much better, is cheaper, easier to install and does not cause "surging" or fluttering. Furthermore, it does not require other springs to be adjusted to the respective boost pressure, nor does it require regular maintenance. It also withstands any boost pressure.

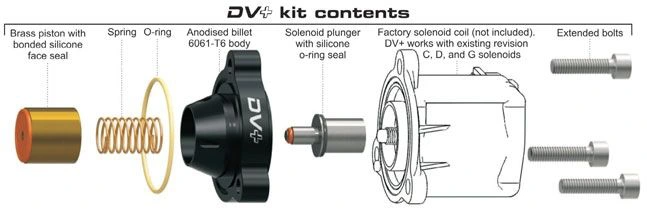

The secret here is that the piston seals by the applied boost pressure itself and not by the spring. Through small openings in the guide housing of the piston, the pressure flows backwards into the valve unit and pushes the piston downwards by the own force of the boost pressure, which presses the piston with the rubberised underside against the stop, thus sealing the system under load. By means of the so-called "Pliot" (in the illustration below called "solenoid plunger") the "pressure chamber" of the piston is now sealed airtight, so that pressure is now applied to a larger area inside the piston chamber than from below is the rubberised underside. As soon as there is a load change (eg during gear shifting), the control unit lifts the plunger and the pressure can escape from the piston chamber, which causes the piston to lift and divert the excess pressure from the charge air system.
Advantages:
- 100% tight even at high charge pressures (error-free up to 2.5 bar)
- Noticeably more power and torque
- made of Aluminum (body) or brass (piston): more reliability and durability for higher performance vehicles
- Faster boost pressure build-up compared to an original Blow off valve
- Plug & Play: Easy installation within 10-15 minutes, as the original control unit is retained
Notice for use on Ford Mustang 2.3l Ecoboost models:
If an original valve from the manufacturer Continental is installed (on these the piston cannot be removed, inscription: JT4E-9U465-AA), then a valve from the manufacturer Pierburg must also be purchased, as only here can the DV+ be fitted. The Pierburg part number for this valve is: 7.04615.03.0
Notice for use on Mercedes Bi-Turbo models:
Two valves are required for one vehicle.
Fit:
