VAG Gen2 2.0 TSI/TFSI Turbosystems Hybrid Turbocharger (Transverse)

SKU: vag-gen2-tsi/tfsi-upg-1
Regular price €1.882,00 incl. VAT
Version

QT Parts is a Finnish online store.

Our warehouse is located in Nokia, Finland.

You can collect your order directly from us if needed. Simply select “Pickup” at checkout.

Pay securely with multiple payment methods, including invoice and installment plans through Klarna.

The delivery time for products in stock is 1-5 business days. We ship worldwide.

If the product is not in stock and it is a pre order product, the average delivery time is 5-21 business days. If the product has a longer delivery time than previously announced, we will be in touch. International orders may be subject to VAT, import duties, and customs fees upon arrival in the destination country.

Terms for product returns:

  • You must return the ordered products within 14 days of receiving
  • The products must be unused and without damages
  • Commission fee for handling returns is 21,90€
  • For product returns, the customer is in charge of the return costs. Only door to door service (Express)
  • Shipping costs are not refunded

For international orders sales are final and non-refundable. Once an order is placed, it cannot be canceled or returned. By placing an order, you acknowledge and agree to these terms.

Return address: QT Parts, Vasarakatu 8B, 37150 Nokia, Finland.

Pre order / made-to-order products

If the product you have ordered is a pre order or made-to-order item, it is not subject to the 14-day right of withdrawal or return under consumer protection laws, as the product is manufactured or sourced specifically based on the customer’s individual order.

If you wish to cancel your order before receiving the product, we will refund 50% of the total order amount.

This condition applies to the following product categories:

  • Suspension
  • Engine Tuning
  • Engine Parts
  • Exhaust Systems
  • Fueling
  • Turbochargers/superchargers
  • Drivetrain
  • ECE-approved Downpipes

All of the above products are manufactured or sourced individually based on the customer’s order, and therefore cannot be returned after delivery, unless the product has a manufacturing or material defect.

In the event of such a defect, the standard liability for defects as provided by consumer protection legislation shall apply.

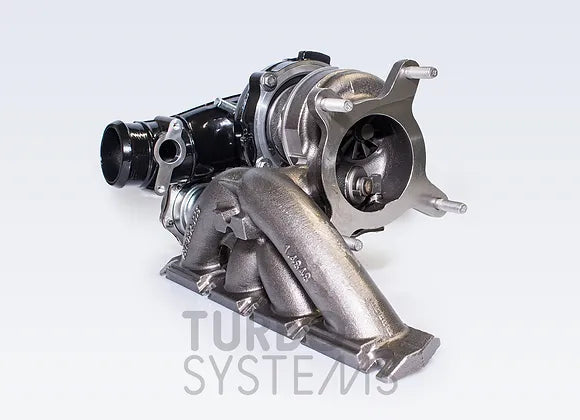

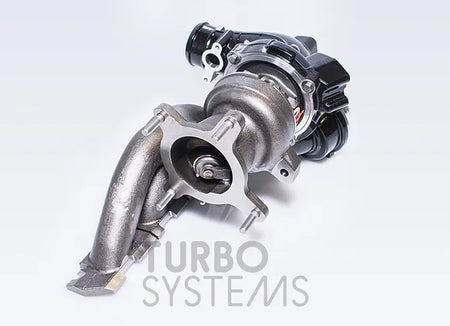

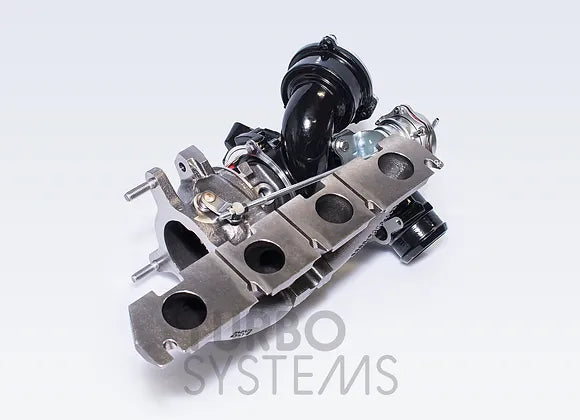

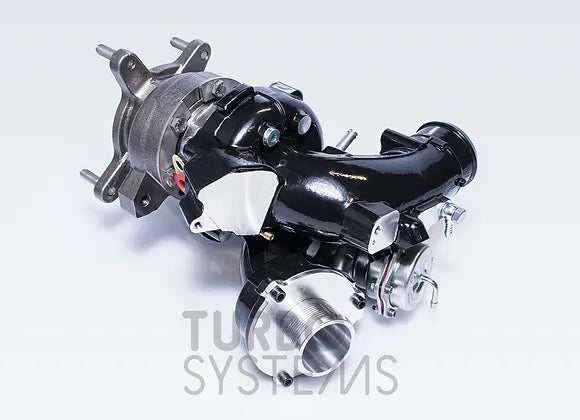

Turbosystems VAG Gen2 2.0 TSI/TFSI Upgrade Turbo Features

  • Twin Ceramic Ball Bearings

  • Reinforced and enlarged full-milled compressor wheel

  • Enlarged turbine wheel

  • CNC machined refurbished compressor housings

  • VSR balanced

We offer two different versions:

  • GTI version (with blow-off valve connection)

  • R version (without blow-off valve connection)

The R version is a complete bolt-on installation. The GTI version requires a silicone connector for the charge pipe.

Power range: Up to 430+ hp

Compatibility

Without Blow-Off Valve Connection (R Version)

Model Year Engine Code Power (kW/hp)
Audi S1 2.0 TFSI 2012–2012 CDLH 195 / 265
Audi S3 2.0 TFSI (8P/PA) 2006– BHZ 195 / 265
Audi TTS 2.0 TFSI (8J) 2006– BHZ 200 / 272
Seat Leon 2.0 TFSI Cupra 2006– BWJ / CDLD 177 / 241
Volkswagen Golf V 2.0 TFSI 2008–2010 BYD 169 / 230
Volkswagen Golf VI 2.0 R 2009– CDLF 199 / 270
Volkswagen Golf VI 2.0 GTI 35 2011–2012 CDLG 173 / 235
Volkswagen Scirocco 2.0 R TSI 2009–2014 CDLA 195 / 265

KKK Number: 5304 988 0064 / 5304 970 0064

OEM Number: 06F145702C, 06F145702CX, 06F145702CV

With Blow-Off Valve Connection (GTI Version)

Model Year Engine Power (kW/hp)
Audi A3 (8P1), Cabriolet (8P7), Sportback (8PA), Quattro 2004–2012 2.0 TFSI 147 / 200
Audi Q3 (8UB, 8UG) 2011–2015 2.0 TFSI Quattro 125 / 170, 155 / 211, 147 / 200
Audi TT (8J3), Quattro 2006–2010 2.0 TFSI 147 / 200
Audi TT Roadster (8J9), Quattro 2008–2010 2.0 TFSI Quattro 147 / 200
SEAT Alhambra (710, 711) 2010–2012 2.0 TSI 147 / 200
SEAT Altea XL (5P5, 5P8) 2009– 2.0 TFSI 4x4 155 / 211
SEAT Leon (1P1) 2009–2012 2.0 TFSI 155 / 211
Škoda Octavia II (1Z3) / Combi (1Z5) 2005–2013 2.0 TFSI 147 / 200
Škoda Superb II (3T4) / Combi (3T5) 2010–2015 2.0 TFSI 147 / 200
VW Beetle (5C1, 5C2) 2011–2016 2.0 TFSI 147 / 200
VW Beetle Cabriolet (5C7, 5C8) 2011–2016 2.0 TFSI 147 / 200
VW CC B7 (358) 2011–2016 2.0 TFSI / TSI 147 / 200, 155 / 210
VW Eos (1F7, 1F8) 2006–2015 2.0 TFSI / TSI 147 / 200, 155 / 210
VW Golf V (1K1) 2004–2009 2.0 GTI 147 / 200
VW Golf V Variant (1K5) 2007–2009 2.0 TFSI 147 / 200
VW Golf VI (5K1) 2009–2012 2.0 GTI 147 / 200, 155 / 210
VW Golf VI Cabriolet (517) 2012–2016 2.0 GTI 155 / 211
VW Golf VI Variant (AJ5) 2009–2013 2.0 TFSI 147 / 200
VW Jetta III (1K2) 2005–2010 2.0 TFSI 147 / 200
VW Jetta IV (162, 163, AV3, AV2) 2010– 2.0 TFSI 147 / 200
VW Passat Alltrack B7 (365) 2012–2014 2.0 TSI 4Motion 155 / 210
VW Passat B6 (3C2) / Variant (3C5) 2005–2010 2.0 TFSI 147 / 200
VW Passat B7 (362) / Variant (365) 2010–2014 2.0 TSI 155 / 210
VW Passat CC B6 (357) 2008–2012 2.0 TFSI / TSI 147 / 200, 155 / 211
VW Scirocco III (137, 138) 2008–2009 2.0 TFSI / TSI 147 / 200, 155 / 210
VW Sharan (7N1, 7N2) 2010–2015 2.0 TFSI 147 / 200
VW Tiguan (5N) 2007–2018 2.0 TFSI / TSI 4Motion 125 / 170, 132 / 180, 147 / 200, 155 / 211

OE Numbers

53039700290, 53039880290, 9VA02, JH5, JH5 IT, 9VA13, 9VA02, F51CAF-SQ001B, TW9P13NR5CW20

OEM Numbers

06J145713K, 06J145701T, 06J145702L, 06J145713L, 06J145713T, 06J145701N, 06J145702K, 06J145722B, 06J145713KX, 06J145701TX, 06J145702LX, 06J145713LX, 06J145713TX, 06J145701NX, 06J145702KX, 06J145722BX
