HF-Series Intercooler Kit - Honda Civic Type R FK2 310HP
Varastossa olevien tuotteiden toimitusaika on 1-3 arkipäivää.
Mikäli tuotetta ei ole varastossa ja kyseessä on tilaustuote, keskimääräinen toimitusaika on 5-14 arkipäivää. QT Parts tuotteilla n. 5-10 arkipäivää, muilla 5-21 arkipäivää. Mikäli tuotteelle tulee esiintymään aiemmin ilmoitettua pidempi toimitusaika, olemme asiasta yhteyksissä.

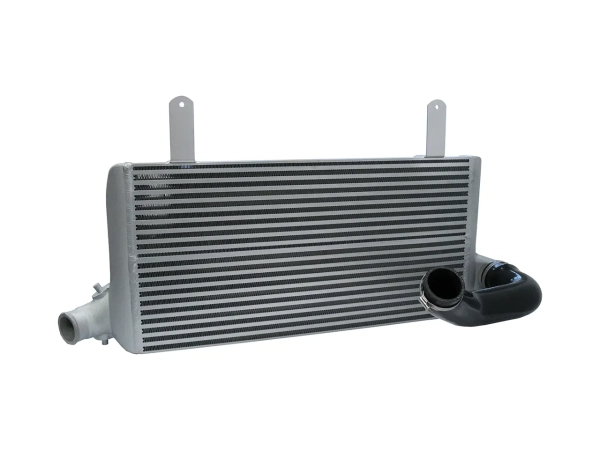

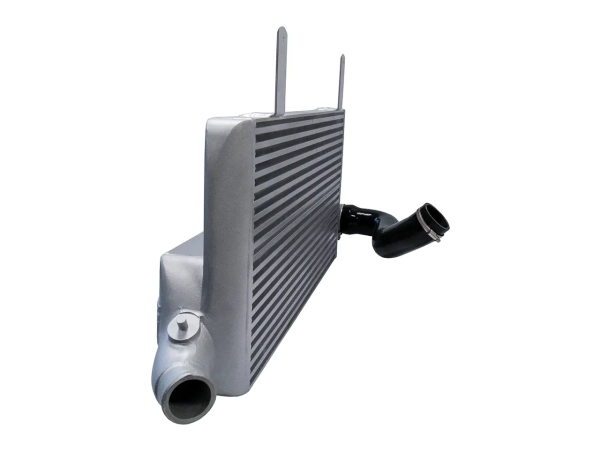

This upgrade intercooler for the Honda Civic Type R Type FK is a highlight of the HF-Series range.
The high quality BNP coretype has the best cooling properties to provide optimum performance even in poor conditions and is also very robust. It is characterized by a high resistance and heats itself not so much as comparable coretypes of other manufacturers.
At the same time the whole system is also aligned to the best flow. This means that the pressure loss is minimal and the entire intercooler charge air way was aerodynamically designed with CAD-flow analyzes. Also included are the cooler boxes, which are made of high-strength aluminum casting.The advantages of this product are significantly cooler charge air, which improves the combustion of the engine, earlier response and improved flow.
Not only the casted aluminum tanks, which were developed in the 3D-CAD process, but also the minimal pressure loss let this Intercooler be a product, which shouldn´t be missing in any Type R.
Thus, this product is interesting for series vehicles, as well as for racing. Every single cooler was built at the vehicle, calculated in flow simulations and tested at our in-house dynamometer.
Technical details
Core width: 660mm

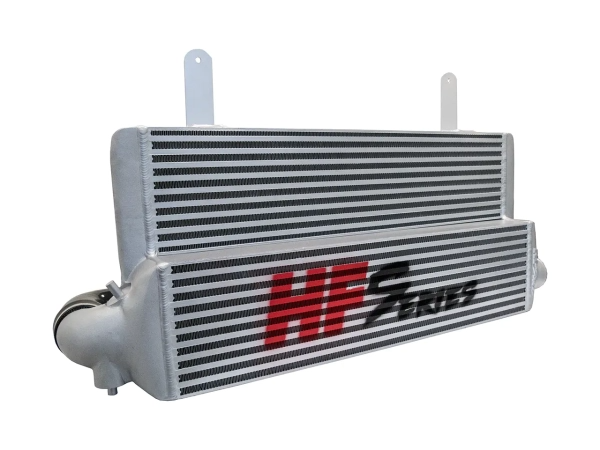

Core height: 330mm (stepped at 168mm)
Core depth: 109mm lower area / 50mm upper area
Core volume (wo. tanks): 17,431cm³ (OEM 5,728cm³)
Flowed Core area: 217.8cm² (OEM 92,4cm²)
Available Core types: Bar´n´Plate

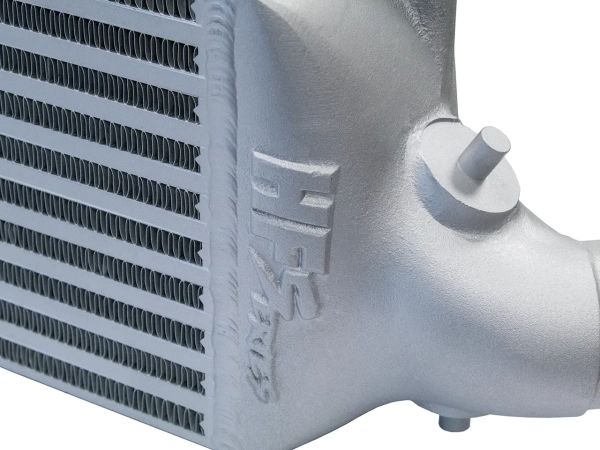

Intercooler Tanks: Aluminium casted (developed in 3D-CAD process)

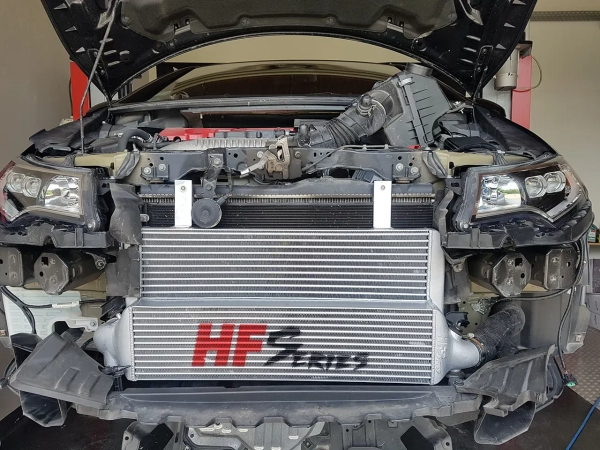

Installation: at OEM Position (same points to mount on)
no approval
Delivery
- Intercooler
- Mounting Material
Direct comparison:
OEM HF-Series
Size: 660x140x62 upside: 660x162x50
downside: 660x168x109
Volume: 5,728 cm³ 17,431 cm³
Airflow: 92,4cm² 217,8cm²
What will the advantages be, if you are installing an upgrade intercooler?
To name an accurate performance increasement, which results by installing an upgrade intercooler in numbers, many unknown factors, like: further hardware changes, as well as the engine software you are using, have to be determined, because this is different from vehicle to vehicle. As a rule of thumb for ECU remapped engines, you can expect up to 5% - 10%. But what at least also as important is: Regardless whether your ECU is already remapped or if it isn´t, upgrade intercoolers preventing a loss of performance at worse conditions, like high outside temperatures or even to reach the temperature protection of your engine. So you will be always able to count on the full power of it.
Recommendation
Use our HF-Series intercooler to complement your hardware and software setup. By reducing the back-pressure (relieving the turbocharger) and improved cooling of the charged air (increasing the oxygen ratio in the combustion chamber + thermal relief), an increased performance results, which lets you use the potential of any turbo-charged engine efficiently.
If youare thinking about hardware and software tuning on your vehicle, you shouldn´t ignore the fact „Charge air pressure loss“.
So, if you are increasing the perfomance of your car by chiptuning, the charge air pressure will increase in 99% oft he cases. The use of the standard charge air cooler increases the load pressure loss exponentially. This means that the turbocharger has to work even more and the thermal load on the turbocharger increases, the running time drops or is weakened by the high speeds of the turbocharger.
With our HF-Series intercoolers, we create the perfect balance between cooling effect and charge air pressure loss.
(Development and partners of this product is the company PS - Motorsport)
HF-Series
HF-Series is the first point of contact when it comes to fresh air supply in vehicles. With this brand, HG-Motorsport has combined professional research and production of high quality intake systems, intercoolers and air guidance systems. In addition to 3D scanning of the vehicle periphery for perfect fitting accuracy, this also includes long series of tests to combine the optimum components for each individual model. The result is racing products.
