HF-Series Intercooler - VAG 1.8-2.0 T(F)SI EA888 Gen.3 (Golf Mk7 GTI, S3 8V)

SKU: HGICVAG21
Normaalihinta €899,00 sis. ALV
Varastossa olevien tuotteiden toimitusaika 1-3 arkipäivää
Tilaustuotteissa toimitusaika 1-2 viikkoa

Varastossa olevien tuotteiden toimitusaika on 1-3 arkipäivää.

Mikäli tuotetta ei ole varastossa ja kyseessä on tilaustuote, keskimääräinen toimitusaika on 5-14 arkipäivää. QT Parts tuotteilla n. 5-10 arkipäivää, muilla 5-21 arkipäivää. Mikäli tuotteelle tulee esiintymään aiemmin ilmoitettua pidempi toimitusaika, olemme asiasta yhteyksissä.

HFSeriers_Logo

This upgrade intercooler for VAG 1.8-2.0 T(F)SI Euro 6 models is a highlight of the HF-Series range.

The high quality Bar'n'Plate core has the best cooling properties to provide optimum performance even in poor conditions and is also very robust.

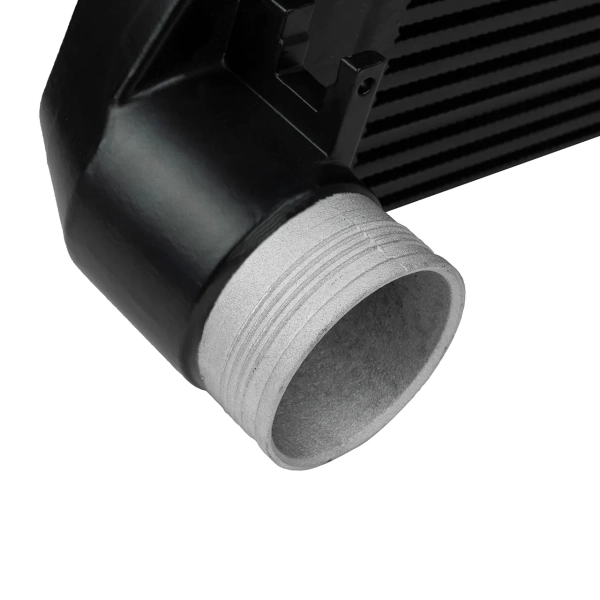

It is characterized by a high resistance and heats itself not so much as comparable networks of other manufacturers. At the same time the whole system is also aligned to the best flow. This means that the pressure loss is minimal and the entire air flow was aerodynamically designed with CAD-flow analyzes. Also included are the cooler boxes, which are made of high-strength aluminum casting and equipped with our WAY FIN TECHNOLOGY.

Technical details:
- Core type: Bar'n'Plate
- Core diemensions HF-Series: 620 x 430 x 50 mm (OEM: 620 x 410 x 30 mm)
- 63,16% more filling volume: HF-Series: 6,2L (OEM: 3,8L)
- 74,71% more core volume: HF-Series: 13,33L (OEM: 7,63L)
- Surface: black powder-coated

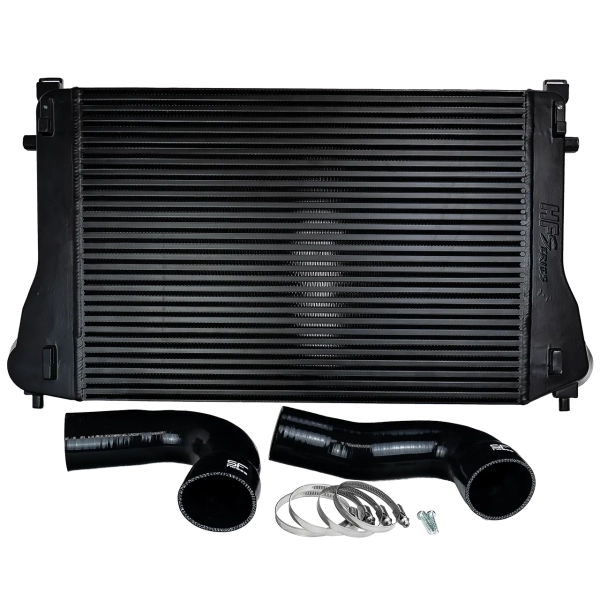

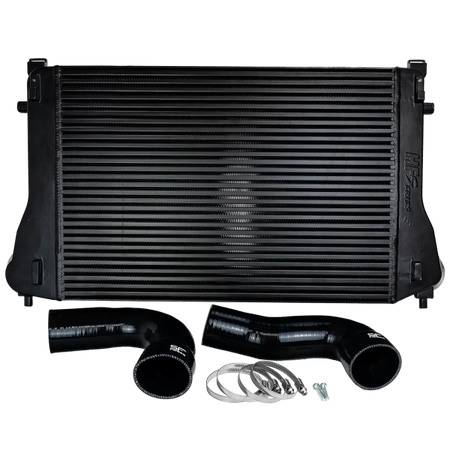

- incl. 2x pressure hoses and 4x clamps
Incl. parts certificate for problem-free registration according to §19.3

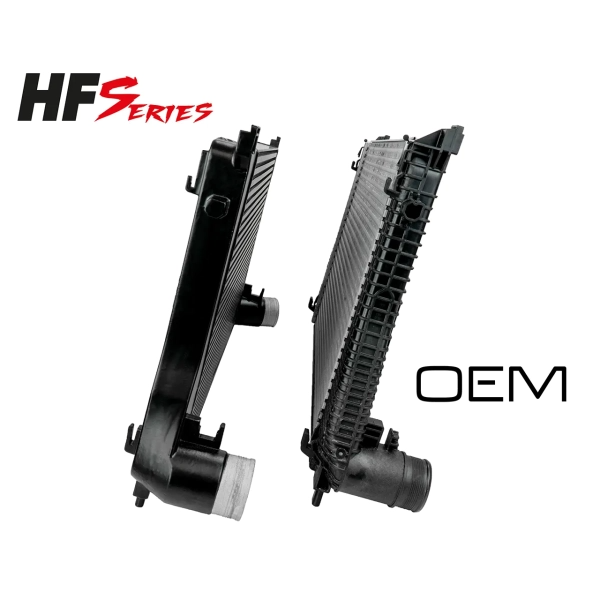

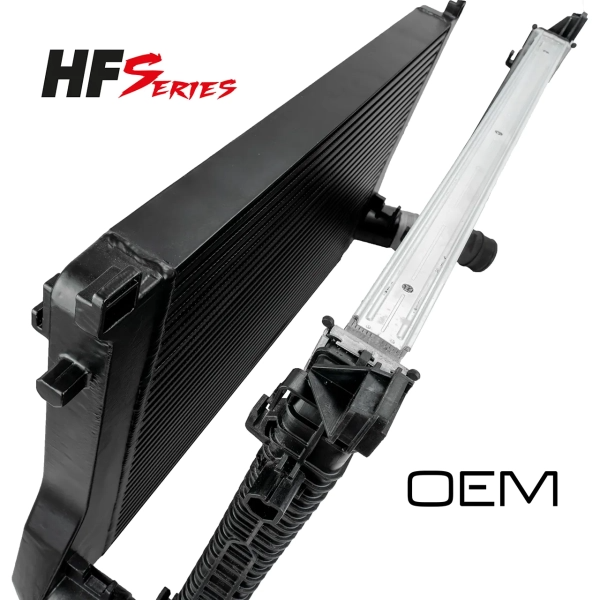

Direct comparison:
                       Series                           HF-Series
Size                 620mmx398mmx30mm    620mmx409mmx50mm
Volume            7,402 cm³                       12,679 cm³



The advantages of this product are:
For a larger view please click on the picture.

1. Improved flow and uniform pressure distribution for maximum efficiency:
With our WAY FIN TECHNOLOGY we achieve an even better flow and a more uniform pressure distribution through the entire radiator network through a guiding fin in the radiator box, thus achieving maximum efficiency.

HGICVAG21_flow



2. Cooler Charge Air:

HGICVAG21_thermalbild

HGICVAG21_temperature

3. Earlier Response & Improved Performance:

HGICVAG21_leistungsdiagramm

Thus, this product is interesting for both series production, as well as for racing, because it is also much higher performance possible.
Each individual radiator was built on each vehicle, calculated in flow simulations and tested on the in-house dynamometer
.

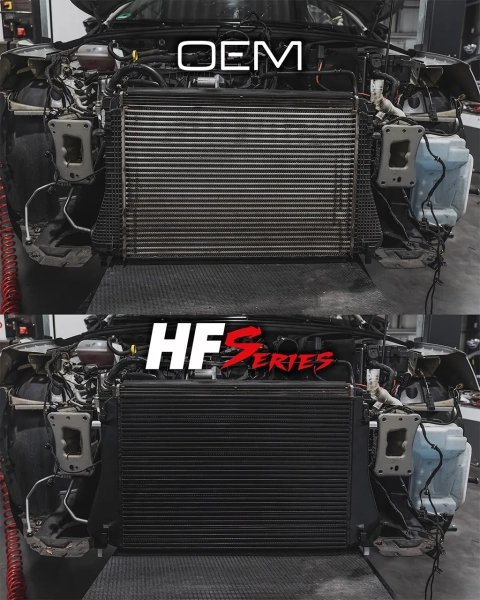

The intercooler is mounted on the original break points of the original OEM intercooler and therefore requires no major modification work. It can be installed by customers with well-stocked toolbox itself.



What will the advantages be, if you are installing an upgrade intercooler?
To name an accurate performance increasement, which results by installing an upgrade intercooler in numbers, many unknown factors, like: further hardware changes, as well as the engine software you are using, have to be determined, because this is different from vehicle to vehicle. As a rule of thumb for ECU remapped engines, you can expect up to 5% - 10%. But what at least also as important is: Regardless whether your ECU is already remapped or if it isn´t, upgrade intercoolers preventing a loss of performance at worse conditions, like high outside temperatures or even to reach the temperature protection of your engine. So you will be always able to count on the full power of it.

Recommendation
Use our HF-Series intercooler to complement your hardware and software setup. By reducing the back-pressure (relieving the turbocharger) and improved cooling of the charged air (increasing the oxygen ratio in the combustion chamber + thermal relief), an increased performance results, which lets you use the potential of any turbo-charged engine efficiently.

If you´re thinking about hardware and software tuning on your vehicle, you shouldn´t ignore the fact „Charge air pressure loss“.

So, if you´re increasing the perfomance of your car by chiptuning, the charge air pressure will increase in 99% oft he cases. The use of the standard charge air cooler increases the load pressure loss exponentially. This means that the turbocharger has to work even more and the thermal load on the turbocharger increases, the running time drops or is weakened by the high speeds of the turbocharger.

With our HF-Series intercoolers, we create the perfect balance between cooling effect and charge air pressure loss.

HF-Series
HF-Series is the first point of contact when it comes to fresh air supply in vehicles. With this brand, HG-Motorsport has combined professional research and production of high quality intake systems, intercoolers and air guidance systems. In addition to 3D scanning of the vehicle periphery for perfect fitting accuracy, this also includes long series of tests to combine the optimum components for each individual model. The result is racing products.

Sopivuus:

Vehicle                 EG-BE-Nr.                 Engine code     cm³    Power(KW/rpm)
Audi A3 8V             e1*2007/46*0607*..       CJSA/CJSB   1798    132/5100-6200
Audi A3 8V             e1*2007/46*0607*..       CZPB            1984    140/4200-6000
Audi A3 8V             e1*2007/46*0607*..       CJXC            1984    221/5500-6200
Audi A3 8V             e1*2007/46*0607*..       CJXG/DJHA   1984    228/5500-6500

VW Golf VII AU        e1*2007/46*0623*..       CHH              1984    162/4500
VW Golf VII AU        e1*2007/46*0623*         CHH              1984    169/4700
VW Golf VII AU        e1*2007/46*0623*..       CJX               1984    221/5500-6200
VW Golf VII AUV      e1*2007/46*0627*..       CJX               1984    221/5500-6200
VW Golf VII AUV      e1*2007/46*0627*..       CJS               1798    132/5000
VW Golf VII AU        e1*2007/46*0623*..       CJXB             1984    206/5100-6500
VW Golf VII AU/FL   e1*2007/46*0623*..       CHHA            1984    169/5000
VW Golf VII AU/FL   e1*2007/46*0623*..       DLBA             1984   180/5500
VW Golf VII AU/FL   e1*2007/46*0623*         DNUC            1984    213/5300-6600(Passend, jedoch ohne Gutachten!)
VW Golf VII AU/FL   e1*2007/46*0623*         DJHA             1984    228/5500

VW Golf VII AUV/FL e1*2007/46*0627*..       DJHA             1984    228/5500
VW Golf VII AU        e1*2007/46*0623*..       CJXE             1984    195/5300-6600
VW Golf VII AU        e1*2007/46*0623*..       CJXG             1984    228/5300-6600
VW Passat B8         e1*2001/116*0307*37-  CJSA             1798    132/5100-6200
VW Passat B8         e1*2001/116*0307*37-  CHHB            1984    162/4500-6200
VW Passat B8         e1*2001/116*0307*37-  CJXA             1984    206/5600-6500
VW T-Roc A1          e13*2007/46*..               CZPB             1984    140/4200-6000
VW T-Roc A1          e13*2007/46*..               DNUE            1984     221/4200-6000(Passend, jedoch ohne Gutachten!)
VW Arteon 3H        e1*2007/*2016*..           CZPB             1984    140/4180-6000
VW Arteon 3H        e1*2007/46*1725*..       DJHC             1984    206/5600

Seat Leon 5F          e9*2007/46*0094*..       CJSA/CJSB    1798    132/5100-6200
Seat Leon 5F          e9*2007/46*0094*..       CJXE             1984    195/5350-6500
Seat Leon 5F          e9*2007/46*0094*..       CJXA             1984    206/5600-6600
Seat Leon 5F          e9*2007/46*0094*..       CJXH             1984    213/5900-6400
Seat Leon 5F          e9*2007/46*0094*..       CJXC             1984    221/5500-6200
Seat Leon 5F          e9*2007/46*0094*..       CJXG             1984    228/5800-6500
Seat Ateca 5FP       e9*2007/46*6394*..       CZPB             1984    140/4180-6000

Skoda Octavia 5E   e11*2007/46*0243*..      CJSA/CJSB   1798    132/4500-6200
Skoda Octavia 5E   e11*2007/46*0243*..      CHHB           1984    162/4500-6200
Skoda Octavia 5E   e11*2007/46*0243*..      CHHA           1984    169/4700-6200
Skoda Octavia 5E   e11*2007/46*0243*..      DLBA           1984     180/4700-6200
Skoda Octavia 5E   e11*2007/46*0244*..      CJSA/CJSB   1798    132/4500-6200
Skoda Octavia 5E   e11*2007/46*0244*..      CHHB           1984    162/4500-6200
Skoda Octavia 5E   e11*2007/46*0244*..      CHHA           1984    169/4700-6200
Skoda Octavia 5E   e11*2007/46*0244*..      DLBA           1984    180/4700-6200
Skoda Superb 3T   e11*2001/116*0326*32-  CJXA           1984    206/5600-6500
Skoda Superb 3T   e11*2007/46*0014*22-    CJXA           1984    206/5600-6500
