CCV Catch Can Kit for Mitsubishi EVO X 2008–2016 Fluid Lock Radium Engineering
Compatibility
- 2008–2016 Mitsubishi Lancer Evolution X
- Compatible with both metal and plastic valve cover variations
Overview
An oil catch can is an essential upgrade for protecting performance engines from elevated levels of crankcase blow-by generated during aggressive driving. Excess oil vapors entering the intake system can reduce performance by contaminating the intake piping, turbocharger, intercooler, and intake manifold.
Radium Engineering Fluid Lock® catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.
The EVO X catch can systems are fully closed-loop (VTE), making them emissions and track legal. They route clean, filtered air back into the engine while promoting negative crankcase pressure and preventing unwanted oil vapors from entering the cabin.
Part Number
20-1106-FL CCV Catch Can Kit, Mitsubishi EVO X
Description
The 20-1106-FL CCV Catch Can Kit installs immediately behind the left-hand headlight and connects inline with the factory crankcase vent (CCV) hose.
This hose routes crankcase vapors from the valve cover to the turbocharger intake pipe. Without a catch can, oil vapor, unburned fuel, and sludge can contaminate the intake piping, turbocharger compressor, and intercooler, reducing intercooler thermal efficiency and overall engine performance.
The Fluid Lock® catch can captures these contaminants before they enter the intake system, helping maintain cleaner intake components and supporting long-term engine reliability.
For complete crankcase ventilation protection, Radium Engineering recommends pairing this kit with the PCV Catch Can Kit as part of the 20-1107-FL Dual Catch Can Kit.

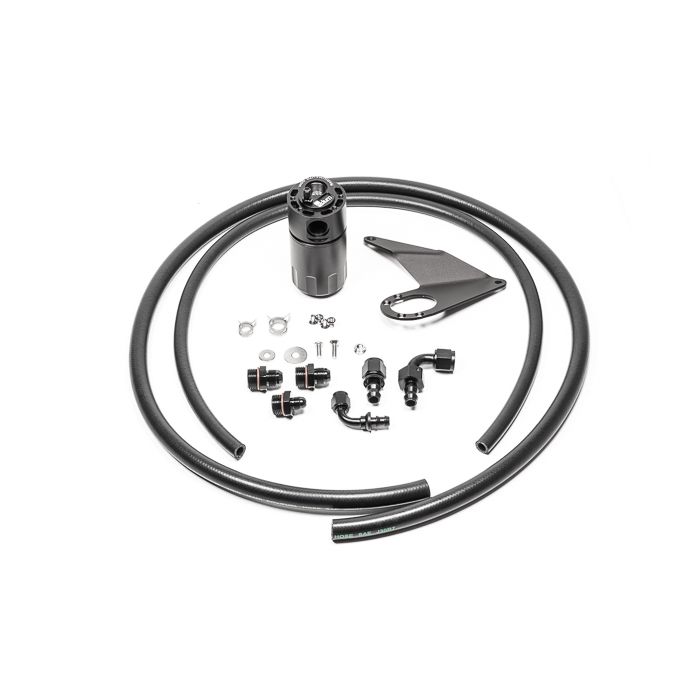

Includes
- Billet Fluid Lock® oil catch can with integrated condenser and dipstick
- Laser-cut powder-coated left-hand mounting bracket
- 6AN and 8AN aluminum hose ends and adapter fittings
- 3/8-inch and 1/2-inch PCV hose for custom applications
- Stainless steel mounting hardware
