Overview
Radium Engineering Fluid Lock® catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.
The kits mount using factory mounting locations and integrate seamlessly with surrounding engine components. They operate as fully closed-loop systems and do not vent to atmosphere (VTA), making them emissions and track legal while promoting negative crankcase pressure and preventing unwanted oil vapors from entering the cabin.
No cutting, drilling, or permanent vehicle modifications are required.
Part Number
20-0555 Dual CCV Catch Can Kit, Nissan R35 GT-R
Description

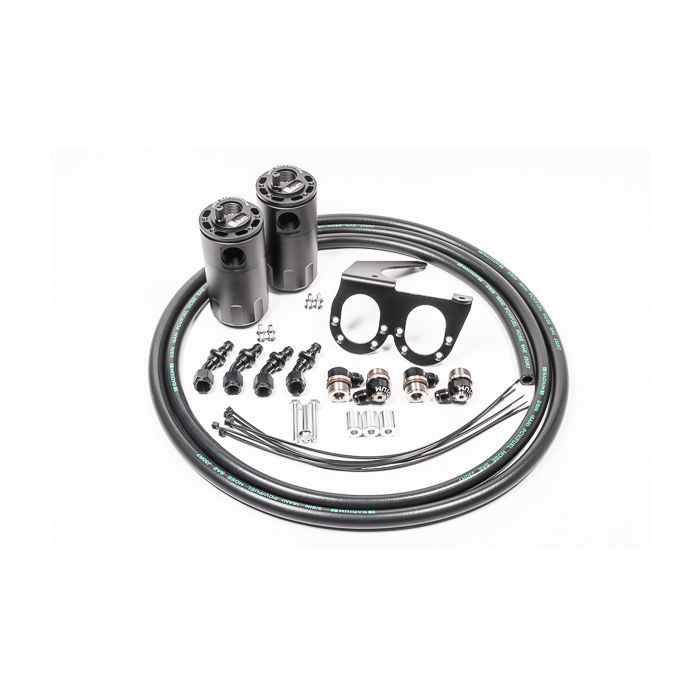

The 20-0555 Dual CCV Catch Can Kit includes two Fluid Lock® catch cans—one for each cylinder head breather. Both catch cans install inline between the factory crankcase vent (CCV) ports and their corresponding turbocharger inlet pipes while retaining full factory functionality.
During light engine loads, the crankcase vents experience atmospheric pressure. Under high engine load (WOT), significant crankcase blow-by flows through these lines toward the turbo inlets. Without catch cans, oil vapor and sludge can accumulate in the intake piping and intercoolers, reducing heat exchanger efficiency and engine performance.
By capturing these contaminants before they enter the intake system, the dual CCV system helps maintain cleaner intake components and supports long-term engine reliability.
Notes
- The dual CCV catch can kit does not address blow-by from the PCV side of the crankcase.
