Dual Catch Can Kit for Ford Fiesta ST Fluid Lock Radium Engineering
Compatibility
Overview
Radium Engineering Fluid Lock® catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.
The PCV and Crankcase catch can systems operate independently and are available individually or together as a dual kit. These closed-loop systems do not vent to atmosphere (VTA), making them emissions and track legal while promoting negative crankcase pressure and preventing unwanted oil vapors from entering the cabin.
The kits mount using factory mounting locations and fit beneath the factory engine cover with no cutting, drilling, or permanent vehicle modifications required.
Description
The Dual Catch Can Kit combines both the PCV and Crankcase catch can systems to provide complete crankcase ventilation protection.
The PCV catch can mounts to the front right-hand engine mount and installs inline with the factory PCV valve, capturing metered crankcase vapors, unburned fuel, and oil sludge before they reach the intake manifold. Because the Fluid Lock® catch can is pressure sealed, it is ideal for this turbocharged application and permits direct intake manifold connection.
The Crankcase catch can mounts to the two factory ECU mounting studs on the rear left-hand side of the engine bay and installs inline with the crankcase vent hose. During high engine load (WOT), it captures oil vapor and sludge before they can contaminate the intake piping and intercooler.
Working together, both Fluid Lock® catch cans help keep the intake system cleaner, maintain intercooler efficiency, and support long-term engine performance and reliability.

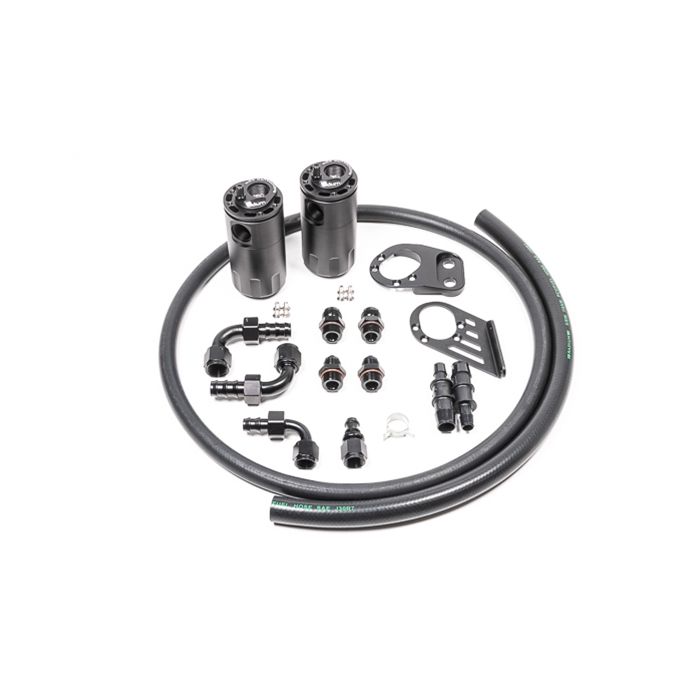

Includes
PCV Kit
- Anodized Fluid Lock® oil catch can with integrated condenser and dipstick
- Fiesta ST-specific anodized aluminum mounting bracket
- Anodized aluminum AN adapter fittings and hose ends
- PCV hose for custom applications
- Stainless steel mounting hardware
Crankcase Kit
- Anodized Fluid Lock® oil catch can with integrated condenser and dipstick
- Fiesta ST-specific anodized aluminum mounting bracket
- Anodized aluminum AN adapter fittings and hose ends
- PCV hose for custom applications
- Stainless steel mounting hardware
