TTE555 Upgrade Turbocharger - VAG MQB EA888.3 IS38
Varastossa olevien tuotteiden toimitusaika on 1-3 arkipäivää.
Mikäli tuotetta ei ole varastossa ja kyseessä on tilaustuote, keskimääräinen toimitusaika on 5-14 arkipäivää. QT Parts tuotteilla n. 5-10 arkipäivää, muilla 5-14 arkipäivää.
VAG 2.0 / 1.8TSI EA888.3 MQB TTE555 5554 UPGRADE TURBOCHARGER
Huom! Mikäli päivität vanhat ahtimet, ne täytyy olla hyvässä kunnossa jotta ahtimien päivityksestä ei tule lisäkuluja.
TTE555 is our very latest hybrid performance upgrade turbocharger based on the Original IHI IS38 turbocharger for the 3rd generation VAG 2.0TSI. Stage 3+ power, with good spool and response. We feel this is the strongest performing hybrid IS38 available on offer.
Engineered & Enhanced EA888 Gen 3 - IS38
To construct a TTE555 we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. We replace the original IS38 turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house.
We also fit our TTE CNC Billet silencer delete, removing any restriction and its function as a noise-canceling device, and so improving the flow & response and enhancing the sound.
The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Product Highlights:
- Original Genuine IS38 IHI turbocharger as the base part
- Original Genuine actuator
- Original Genuine diverter valve
- TTE Billet Milled compressor 7+7 Blade 55mm Inlet
- TTE High-Flow Low- Mass 9 Blade Turbine 54mm Outlet
- TTE CNC Billet silencer delete
- Reinforced bearing pack
- Plug and Play installation as IS38 turbocharger
- 580PS+ proven
- Proven TheTurboEngineers Quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Software recalibration is required
- 1 YEAR TTE TROUBLE-FREE WARRANTY
- Made in Germany

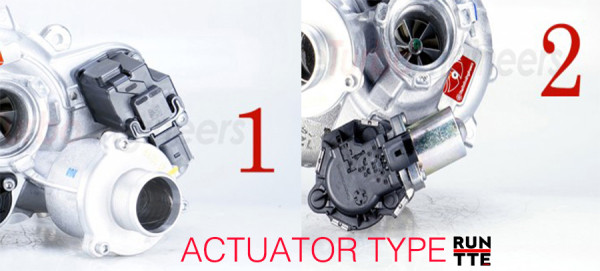

Actuator Selection: Please note on certain generations of cars there was a turbocharger actuator revision please select your correct type.
IF SENDING A TURBOCHARGER BE SURE TO CHECK IS AN OEM GENUINE IHI IS38
Vehicle Selection: Please note on certain generations of cars there was a turbocharger actuator revision. Please use the vehicle selection box. If the car is not listed please let us know in the comments box at check out: model & year
Please note if sending a used turbocharger for the upgrade process. TTE does not recondition the Electronic actuator or Diverter you send. Your sent items will be re-installed. Turbos must be sent complete(actuator, silencer) Do not send your diverter valve. IT IS RECOMMENDED A NEW DIVERTER VALVE IS FITTED
Seat Cupra TTE555 MTR PERFORMANCE Software
Paul's VW Golf 7R TTE555 MRC Tuning software
MTA VW GOLF 7.5 R
98ron & wmi (for high abient temps in HongKong)
Torque below 580Nm and Hp capped so are not pushing the limits of the Standard motor
GOLF 7R TTE555 SPARKLOAD
10.2 1/4 MILE
MORE DYNOS & RESULTS CLICK HERE
