TTE900M+ Upgrade Turbochargers - BMW S63 M5/M6

SKU: TTE10078
Normaalihinta €9.530,00 sis. ALV
Versio
Lämpösuoja
Varastotuotteiden toimitusaika 1-3 arkipäivää

Varastossa olevien tuotteiden toimitusaika on 1-3 arkipäivää.

Mikäli tuotetta ei ole varastossa ja kyseessä on tilaustuote, keskimääräinen toimitusaika on 5-14 arkipäivää.

QT Parts tuotteilla n. 5-10 arkipäivää, muilla 5-21 arkipäivää. Mikäli tuotteen toimitusaika on pidempi, ilmoitamme siitä.

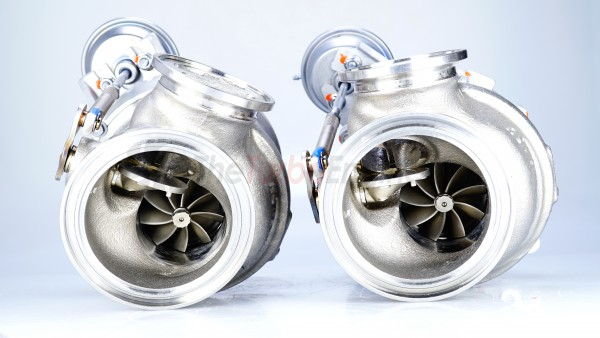

TTE900M+ 5654 UPGRADE TURBOCHARGERS BMW M5, M6 S63 / S63TU

Huom! Mikäli päivität vanhat ahtimet, ne täytyy olla hyvässä kunnossa jotta ahtimien päivityksestä ei tule lisäkuluja.



TTE900M+ hybrid performance upgrade turbochargers based on the Original twin-scroll turbochargers for the twin-turbocharged 4.4 V8 BMW engine. Stage 3 power, with great spool and response.



Engineered & Enhanced


To construct these upgrade turbochargers we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile and fit our CNC billet 76mm intakes. We replace the original turbines and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow.  We also replace the original thrust bearing for a TTE upgrade bearing.



The 9 Blade TTE turbines are a special turbine designed by TheTurboEngineers.  Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.



Equilibrium


Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.





Features :

  • Genuine Garrett Housings & Components
  • Highly Efficient Next Gen TTE Billet Compressor Geometry 56mm inlet
  • Larger diameter 76mm billet intakes
  • Latest Last Gen Larger 9 blade Turbine 54mm outlet
  • Special TTE Reinforced Bearing System
  • Needs custom larger intake feeds. Not plug&play
  • 900+ PS Capable
  • Single parts finely balanced then components assembled and core high-speed VSR balanced
  • Supplied with a balance test result document
  • Software recalibration is required
  • Proven TheTurboEngineers quality
  • 1 YEAR TTE TROUBLE-FREE WARRANTY
  • Made in Germany
  • Price shown is for a PAIR of turbochargers
