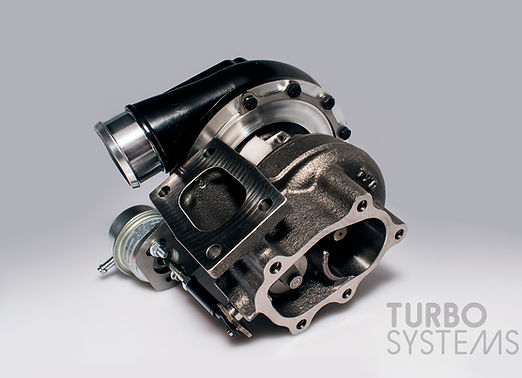

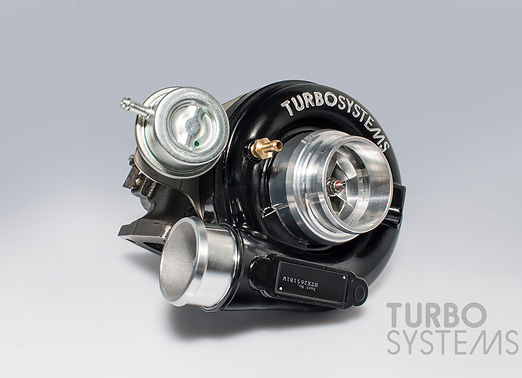

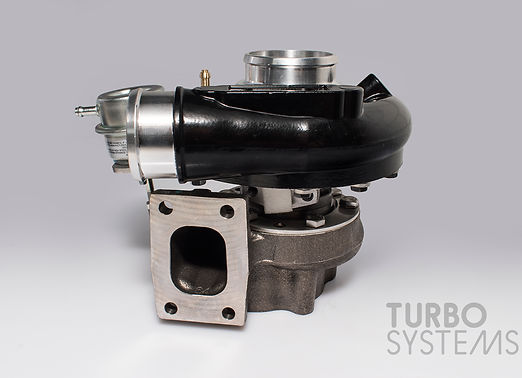

Turbosystems HTX2651B1W Universal Bensa Turbo (350-450HP)

High performance turbocharger with 8cm2, 0.61AR T25/T2 single scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

• Power range: 350-450 HP;

Compressor side:

• Ported shroud compressor housing;
• Compressor wheel: in-house made, reinforced 51/63 mm 9+0 blades machined from the solid aluminium;
• Intake:

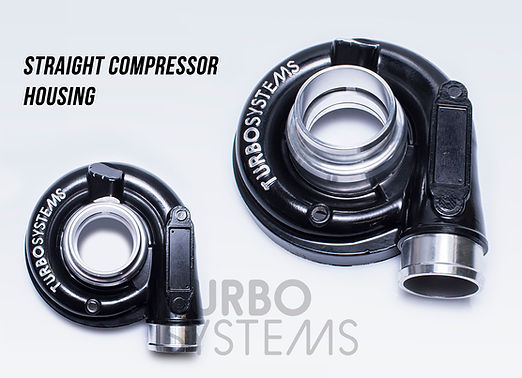

  • Straight compressor housing - 63mm (2,5");

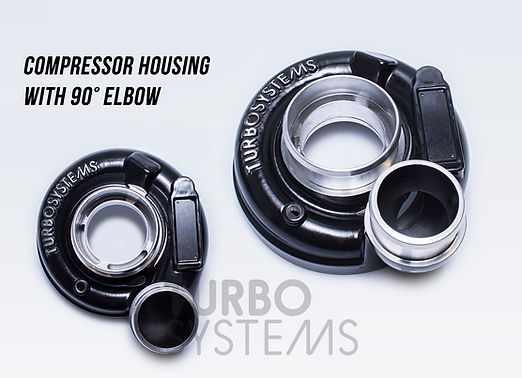

  • Compressor housing with 90° elbow - 76mm (3");
• Air outlet: 51mm (2");

Core:

• Bearings: dual ceramic ball bearings;
• Cooling: water cooling with 2 x M14x1.5 ports;
• Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

• Housing: single scroll, 8cm2 AR: 0.61;
• Turbine wheel: custom design 55/49mm 10 blades;
• Flange: T25/T2 single scroll;
• Exhaust connection: "Garrett" style exhaust flange;
