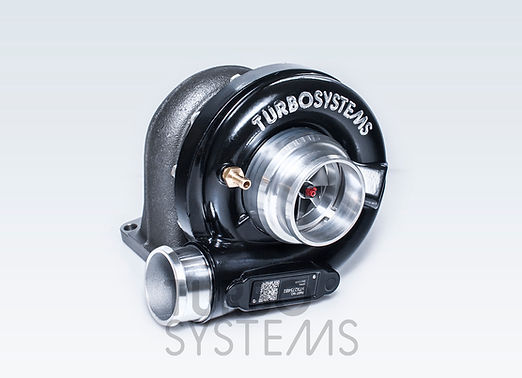

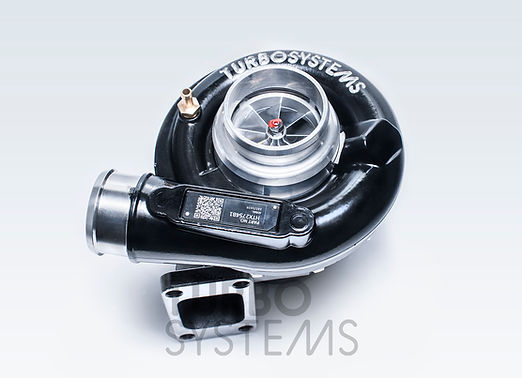

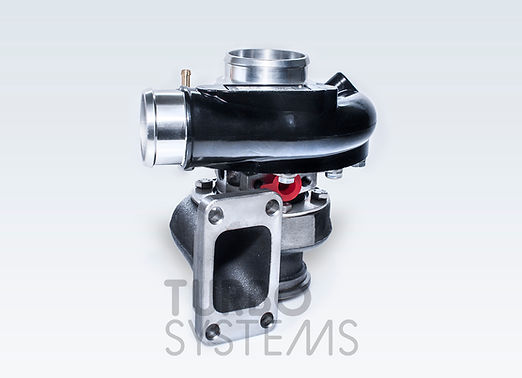

Turbosystems HTX2754B1 Universal Bensa Turbo (400-450HP)

Power range: 400-450 HP

Compressor side:

• Ported shroud compressor housing;
• Compressor wheel: in-house made, reinforced 54/67mm 9+0 blades machined from the solid aluminium;
• Air Intake diameter:

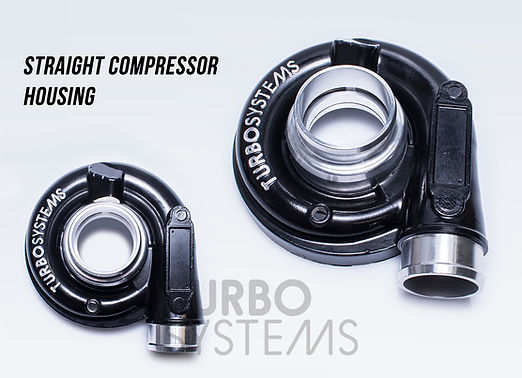

  • straight compressor housing - 63mm (2,5");

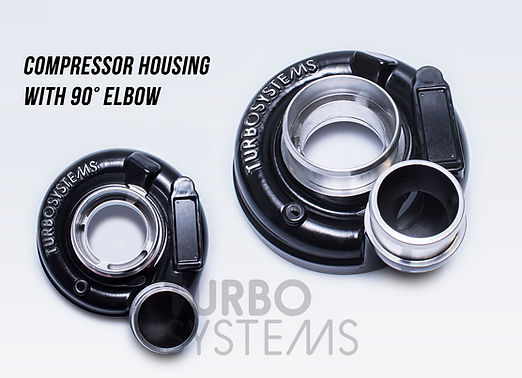

  • compressor housing with 90° elbow - 76mm (3");
• Air outlet diameter: 51mm (2");

Core:

• Bearings: dual ceramic ball bearings;
• Cooling: water cooled bearing housing with 2 M14x1.5 ports;
• Lubrication: AN4 oil inlet with integrated oil restrictor;

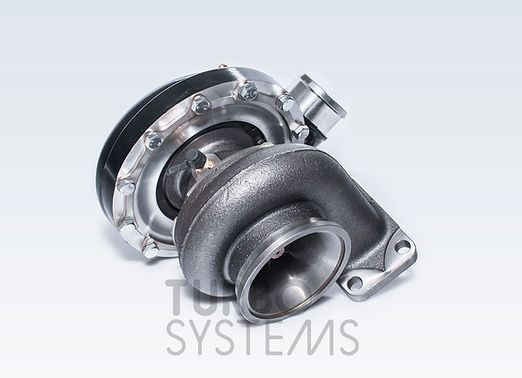

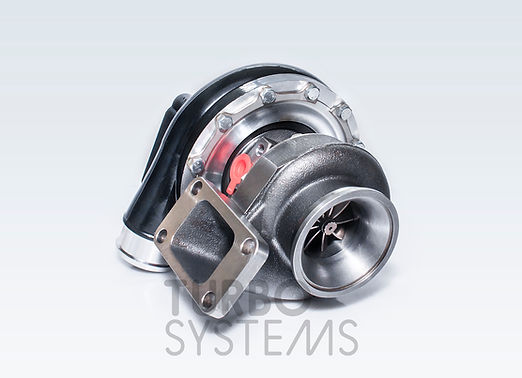

Turbine side:

• Housing: single scroll 8cm2 / AR: 0.61;
• Turbine wheel: custom design 56/53mm 9 blades;
• Flange: T3 single scroll;
• Exhaust connection: 3" V-band clamp;
