BAR-TEK® 2.5 TFSI EA855 Sport Valve Spring Kit

Original BAR-TEK® Sport valve spring kit for 2.5L TFSI engines, as found in Audi TT RS and Audi RS3 models.

A high-quality solution for tuning enthusiasts: The BAR-TEK® Sport valve spring kit is made from hardened special steel and equipped with titanium spring retainers. The kit is suitable for all 2.5L TFSI engines (EA855 / EA855 evo) used in models such as Audi RS3 and TT RS.

Performance and Benefits

These valve springs feature an optimized spring rate, which improves engine response and reaction time. The titanium spring retainers lighten the valvetrain, allowing for higher boost pressure and increased RPMs without reliability issues.

• Improved and faster engine response
• Allows for higher RPMs
• Lighter valvetrain due to titanium retainers
• Excellent stability at high RPMs
• Suitable for higher boost pressures

When to upgrade to sport valve springs?

When increasing engine boost pressure or installing tuning camshafts (e.g., SCHRICK), the original valve springs are often no longer sufficient. This can result in:

• Inadequate valve closure
• Spring breakage
• Severe engine damage

BAR-TEK® sport valve springs eliminate these risks and ensure reliable operation in tuned engines.

Design and Technology

The valve springs are made from heat-treated special steel, which provides high strength and durability. Additionally:

• Special coating increases wear resistance
• Greater material thickness compared to standard springs
• Oval shape allows for greater valve lift
• Conical design reduces mass and improves operation

The optimized design prevents spring coil bind and ensures correct pre-tensioning in all situations. The result is a smoother-running engine and controlled boost pressure.

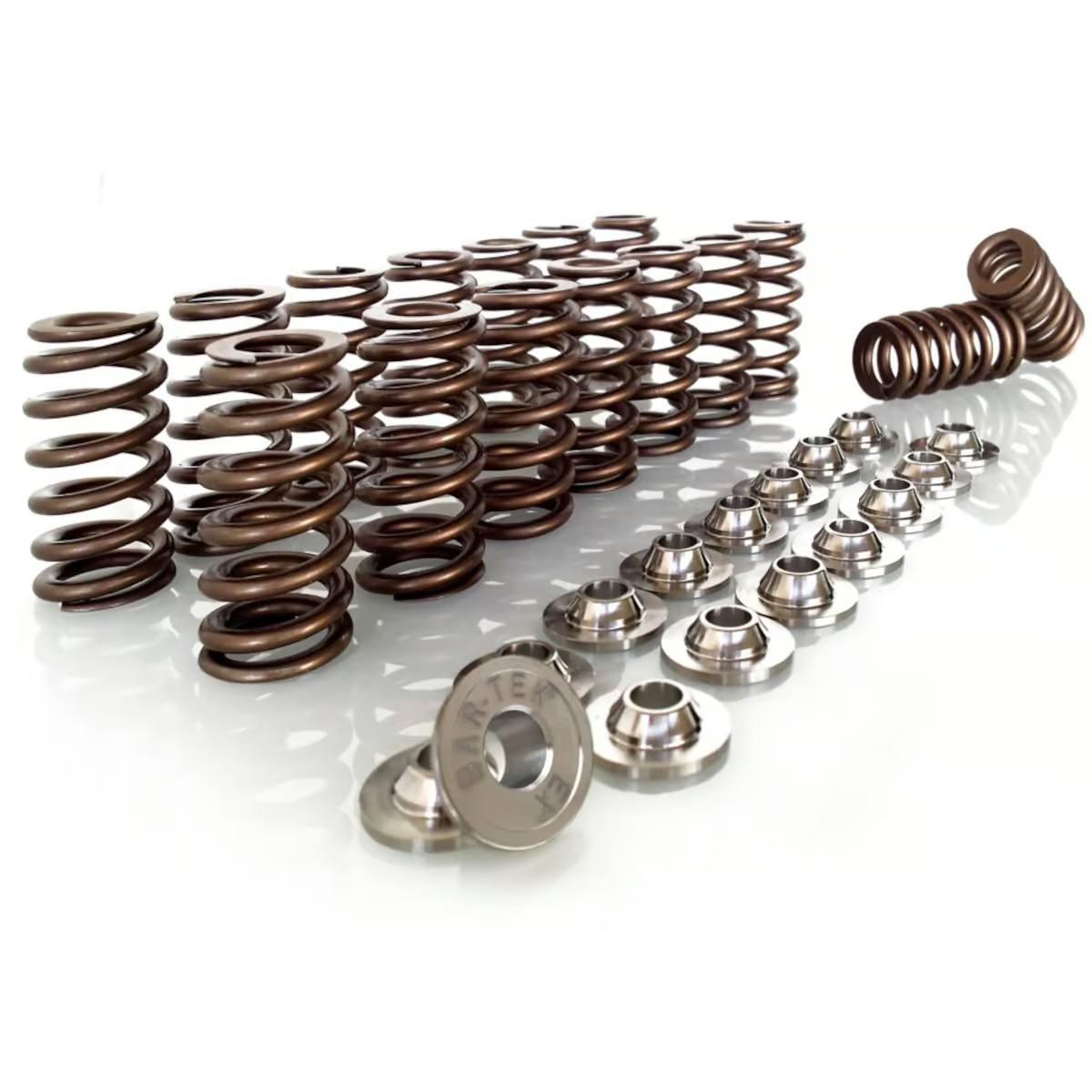

Package Contents

• 20 pcs valve springs (hardened steel)
• 20 pcs valve spring retainers (titanium)

Technical Specifications

• L0 = 47.00 ± 0.30 mm
• F1 = 307 N @ 40.00 mm
• F2 = 748 N @ 30.00 mm
• Spring rate: 44.1 N/mm (441 N @ 10 mm compression)
• Lc = 23.00 mm (maximum)

Compatibility:

Audi A3 / S3 / RS3

• 8P, 8PA | model year 2003–2013
  2.5 TFSI (EA855)
  CEPA | 340 hp (250 kW)
• 8V | model year 2012–2020
  2.5 TFSI (EA855 evo)
  DAZA | 400 hp (294 kW)
• 8V | model year 2012–2020
  2.5 TFSI (EA855 evo)
  DNWA | 400 hp (294 kW)
• 8V | model year 2012–2020
  2.5 TFSI (EA855)
  CZGB | 367 hp (270 kW)
• 8Y | model year 2020–>
  2.5 TFSI (EA855 evo)
  CZGB | 367 hp (270 kW)
• 8Y | model year 2020–>
  2.5 TFSI (EA855 evo)
  DAZA | 400 hp (294 kW)
• 8Y | model year 2020–>
  2.5 TFSI (EA855 evo)
  DNWA | 400 hp (294 kW)
• 8Y | model year 2020–>
  2.5 TFSI (EA855 evo)
  DNWB | 390 hp (287 kW)
• 8Y | model year 2020–>
  2.5 TFSI (EA855 evo)
  DNWC | 400 hp (294 kW)
• 8Y | model year 2020–>
  2.5 TFSI (EA855 evo)
  DNWD | 407 hp (299 kW)
• 8Y | model year 2020–>
  2.5 TFSI (EA855 evo)
  DXHB | 400 hp (294 kW)

Audi Q3 / RS Q3

• 2nd generation (F3) | model year 2018–2025
  2.5 TFSI (EA855 evo)
  DAZA | 400 hp (294 kW)
• 2. nd generation (F3) | model year 2018–2025
     2.5 TFSI (EA855 evo)
     DNWA | 400 hp (294 kW)
• 8U | model year 2011–2018
  2.5 TFSI (EA855)
  CTSA | 310 hp (228 kW)
• 8U | model year 2011–2018
  2.5 TFSI (EA855)
  CZGA | 340 hp (250 kW)
• 8U | model year 2011–2018
  2.5 TFSI (EA855)
  CZGB | 367 hp (270 kW)

Audi TT / TTS / TT RS

• 8J | model year 2006–2014
  2.5 TFSI (EA855)
  CEPA | 340 hp (250 kW)
• 8J | model year 2006–2014
  2.5 TFSI (EA855)
  CEPB | 360 hp (265 kW)
• FV / 8S | model year 2014–>
  2.5 TFSI (EA855 evo)
  CZGB | 367 hp (270 kW)
• FV / 8S | model year 2014–>
  2.5 TFSI (EA855 evo)
  DAZA | 400 hp (294 kW)
• FV / 8S | model year 2014–>
  2.5 TFSI (EA855 evo)
  DNWA | 400 hp (294 kW)
• FV / 8S | model year 2014–>
  2.5 TFSI (EA855 evo)
  DNWB | 390 hp (287 kW)
• FV / 8S | model year 2014–>
  2.5 TFSI (EA855 evo)
  DNWC | 400 hp (294 kW)

Cupra Formentor

• I (VZ) | model year 2020–>
  2.5 TFSI (EA855 evo)
  DNWB | 390 hp (287 kW)
