HF-Series Front Intercooler - Ford Focus RS Mk.2 305HP

This upgrade intercooler for the Ford Focus MK.II RS is a highlight of the HF-Series range.

The high quality HFT coretype has the best cooling properties to provide optimum performance even in poor conditions and is also very robust. It is characterized by a high resistance and heats itself not so much as comparable core types of other manufacturers.

At the same time the whole system is also aligned to the best flow. This means that the pressure loss is minimal and the entire intercooler charge air way was aerodynamically designed with CAD-flow analyses. Also included are the cooler boxes, which are made of high-strength aluminum casting. The advantages of this product are significantly cooler charge air, which improves the combustion of the engine, earlier response and improved flow.

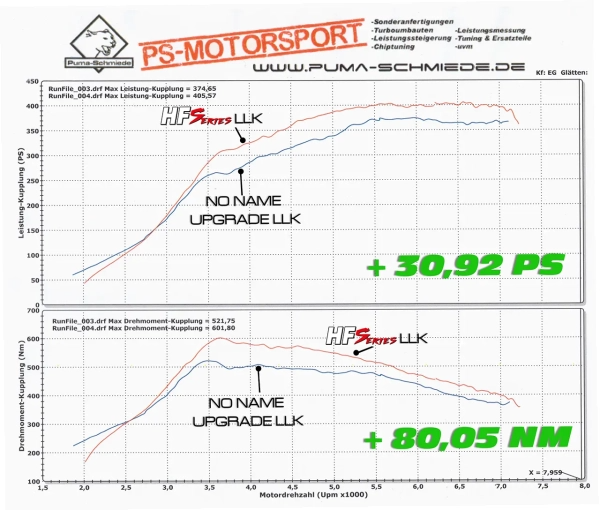

Thus, this product is interesting for series vehicles, as well as for racing. Every single cooler was built at the vehicle, calculated in flow simulations and tested at our in-house dynamometer.

Technical details
coretype: HFT
Length: 770mm (core)
Height: 310mm (core)
Depth: 50mm (core)
core volume without boxes: 11,935 cm³
surface: 238.7 cm²
Incl. parts certificate for problem-free registration according to §19.3

Delivery

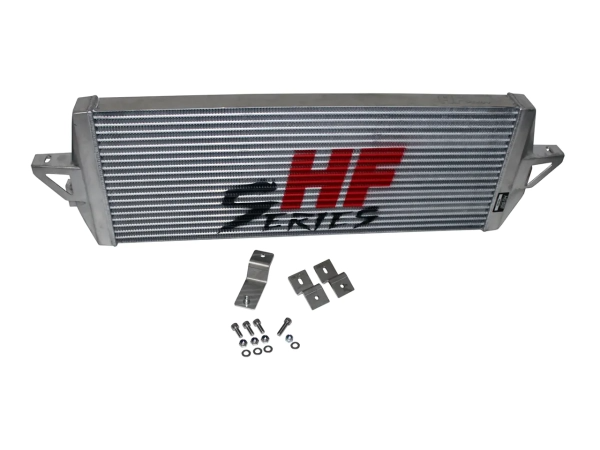

- Intercooler
- Mounting material
- Parts certificate according to §19.3

What will the advantages be, if you are installing an upgrade intercooler?
To name an accurate performance increase, which results by installing an upgrade intercooler in numbers, many unknown factors, like: further hardware changes, as well as the engine software you are using, have to be determined, because this is different from vehicle to vehicle . As a rule of thumb for ECU remapped engines, you can expect up to 5% - 10%. But what at least also as important is: Regardless of whether your ECU is already remapped or if it isn't, upgrade intercoolers preventing a loss of performance at Worse conditions, like high outside temperatures or even to reach the temperature protection of your engine. So you will always be able to count on the full power of it.

Recommendation
Use our HF-Series intercooler to complement your hardware and software setup. By reducing the back-pressure (relieving the turbocharger) and improved cooling of the charged air (increasing the oxygen ratio in the combustion chamber + thermal relief), an increased performance results, which lets you use the potential of any turbo-charged engine efficiently .

If you are thinking about hardware and software tuning on your vehicle, you shouldn´t ignore the fact „Charge air pressure loss“.

So, if you are increasing the performance of your car by chiptuning, the charge air pressure will increase in 99% of the cases. The use of the standard charge air cooler increases the load pressure loss exponentially. This means that the turbocharger has to work even more and the thermal load on the turbocharger increases, the running time drops or is weakened by the high speeds of the turbocharger.

With our HF-Series intercoolers, we create the perfect balance between cooling effect and charge air pressure loss.

(Development and partners of this product is the company PS - Motorsport)
