PTG X M178 Turbo System

PTG X M178 Turbo System – Mercedes-AMG M178

Turbo system for power levels over 1300 horsepower.
Premier Tuning Group continues the development of the M178 engine platform by introducing the PTG X Turbo System for the Mercedes-AMG M178 engine. This complete turbocharger replacement solution is designed for extremely high power levels, enabling performance of up to over 1300 horsepower.

The PTG X system builds upon PTG's extensive experience in M178 engine tuning and expands the performance of the PTG-1000 Turbo System solution by offering even greater flow capacity for the most demanding configurations.

At the core of the PTG X turbos is a dual ceramic ball-bearing cartridge (CHRA), which enhances turbo responsiveness and durability at very high power levels.

The turbo utilizes large, precisely machined components:

• 62/84 mm 5-axis CNC machined compressor wheel

• 62/68 mm Inconel turbine wheel

The turbine housing is made of investment-cast Inconel, which withstands extremely high temperatures and allows for maximum exhaust gas flow.

The compressor housing features an anti-surge design and a purple anodized surge inlet, which effectively protects against turbo surge and improves system reliability.

The PTG X Turbo System is designed for direct bolt-on installation on AMG M178 engines. The system includes all necessary fittings, hoses, and mounting hardware for quick installation.

The system utilizes original wastegate actuators, which simplifies integration with engine control.

• Turbo system designed for over 1300 hp power levels
  Provides very high airflow and performance.

• Dual Ceramic Ball-Bearing CHRA
  Dual ceramic ball bearings improve turbo response time and durability.

• 62/84 mm 5-axis CNC compressor wheel
  Large compressor for maximum airflow.

• 62/68 mm Inconel turbine wheel
  High-temperature resistant turbine for extremely demanding use.

• Purple anodized surge inlet
  Enhances protection against turbo surge.

• Purple anodized turbo backing plate
  Provides added durability and a distinctive finish.

• Inconel mono-scroll turbine housing
  Investment-cast construction for maximum flow capacity.

• 3” air intake
  Allows for greater airflow for high power levels.

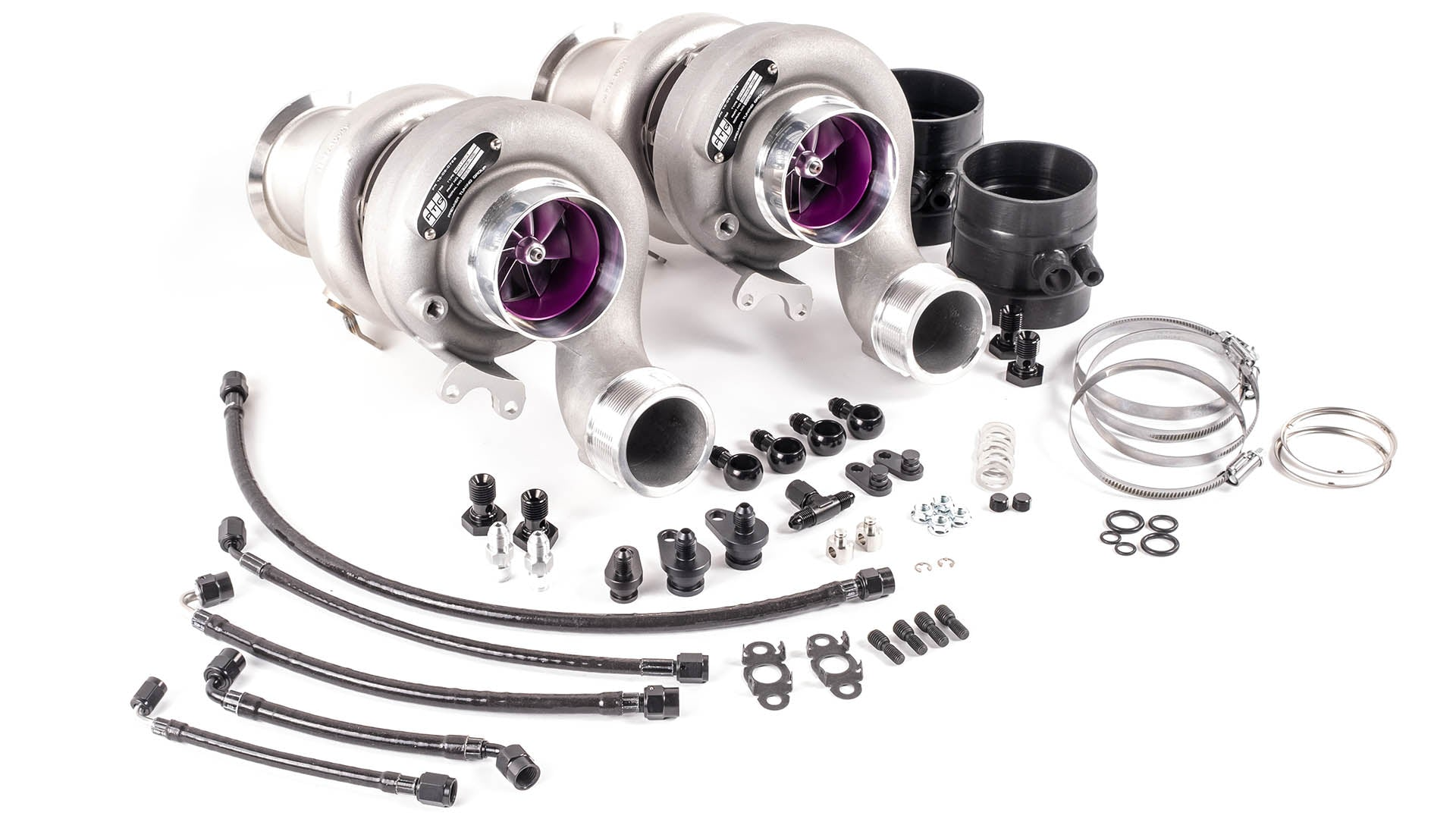

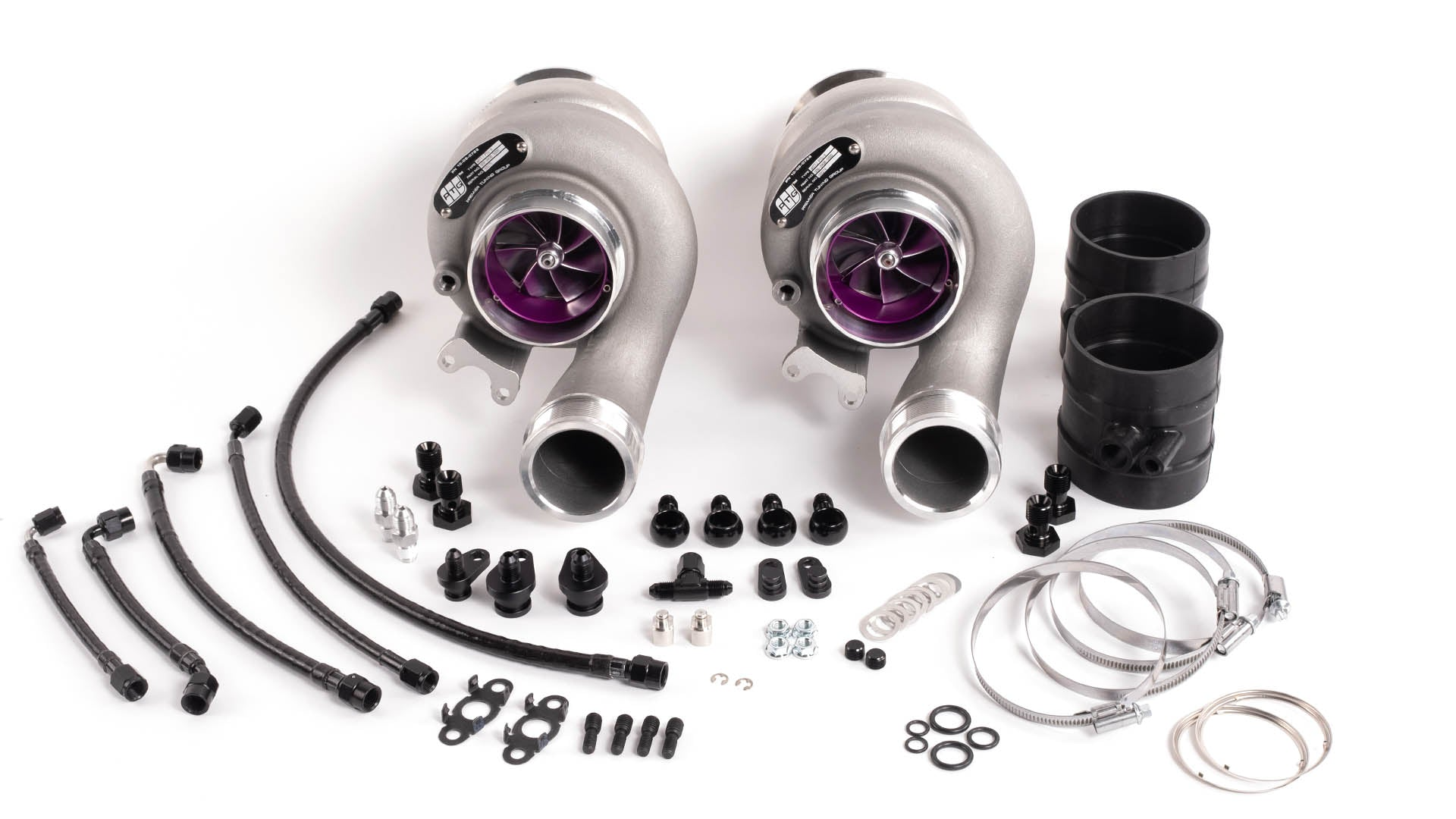

• PTG X turbochargers

• All necessary fittings, hoses, and mounting hardware

• 3” silicone intake couplers

• Datalogging and software optimization capability with the Verstand system
  Enables vehicle data logging and fine-tuning of software for the specific car's configuration.

• No core exchange – no need to return original turbochargers.

• Recommended for built PTG engines to achieve maximum performance.

Compatibility:
