TTE6XX VTG Upgrade Turbocharger - Porsche 718 2.5T

The delivery time for products in stock is 1-3 business days.

If the product is not in stock and it is a pre order product, the average delivery time is 5-21 business days. If the product has a longer delivery time than previously announced, we will be in touch.

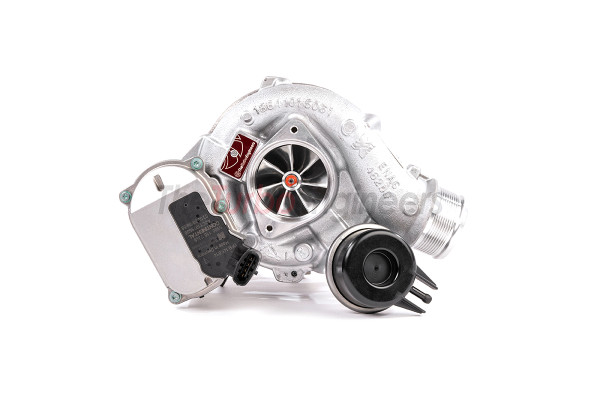

TTE6XX 6054 VTG UPGRADE TURBOCHARGER PORSCHE 718 CAYMAN S, GTS / BOXSTER S, GTS

Note! When you upgrade the old superchargers, they must be in good condition so that there are no additional costs for upgrading the superchargers.

The TTE6XX VTG Turbo upgrade is the Evolution from our proven TTE580VTG giving more mass air flow by way of a larger compressor but same 9blade exhaust turbine.

Still keeping the series model turbocharger that utilizes Variable Turbine Geometry (VTG) technology for quick spool but utilizing a larger higher flowing 9 blade turbine so giving much more power potential and with the fitment of a bigger TTE 7+7 blade milled billet compressor that's been proven at 600+Hp in other TTE Upgrades.

On complete stock car Apart from an after market cat back exhaust 500whp & 471 w Torque was proven on (91 octane) 95RON & WMI, 1.6bar boost at ByDesign in USA

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as Longevity and performance are paramount. Good balance improves acoustics as well. Subsequent great care is taken with all TTE turbochargers to achieve our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the Ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

Product Highlights:

• Original BWTS VTG turbocharger as base part
• TTE Billet Milled TTE compressor 7+7 BLADE 60mm Inlet
• TTE High-Flow Low-Mass 9 Blade Turbine 54mm outlet
• Fast Response
• Plug & Play installation
• Software recalibration is required
• Proven TheTurboEngineers quality
• Proven at 505whp & 471 w Torque on 95RON & WMI 1.6bar boost
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test VSR result document
• Exhaust housing Heat shield thermal isolation (extra cost option)
• 1 YEAR TTE TROUBLE-FREE WARRANTY
• Made in Germany

Key Features

• Non-woven silicate fiber surrounded by welded foil
• Stainless steel rigid insulation foil
• High mechanical and vibration resistance, Lightweight
• Excellent fluid splash and spill resistance
• Excellent corrosion resistance
• Resilient at continuous temperatures up to 1300°C
• Reduced dimensions
• Reduced engine bay temps
• Performance Improvements
• Adjacent component protection
• Up to 600°C lower temps at Isolation surface

Currently being used in the Worlds fastest 718 on Dragy leaderboards. Porsche Boxster s TTE6XX VTG @518whp

We highly recommend the SM Upgrade Charge Cooler is used with this turbo upgrade

(see bellow image for compressor wheel & Turbine comparison of TTE6XX vs TTE580 vs GTS vs S)
